Keystone之電器特性圖

General Information
Product Name :		Keystone jack		Test Project:		EIA/TIA Cat-5e

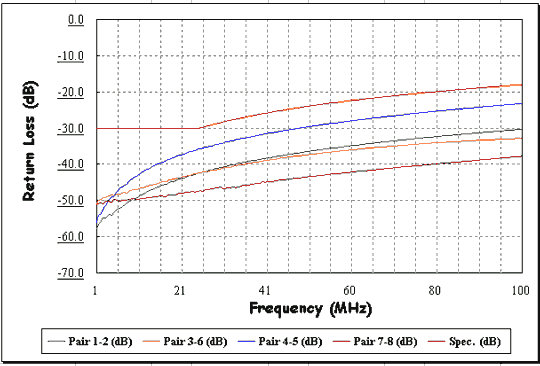

Return Loss Data (dB)
Frequency	Pair 1-2 (dB)	Status	Pair 3-6 (dB)	Status	Pair 4-5 (dB)	Status	Pair 7-8 (dB)	Status
1.00	-57.89	Pass	-50.72	Pass	-55.76	Pass	-50.77	Pass
4.00	-53.99	Pass	-48.73	Pass	-49.69	Pass	-50.06	Pass
8.00	-50.65	Pass	-47.83	Pass	-45.29	Pass	-49.75	Pass
10.00	-49.39	Pass	-47.09	Pass	-43.44	Pass	-49.59	Pass
16.00	-45.97	Pass	-45.05	Pass	-39.56	Pass	-48.69	Pass
20.00	-44.18	Pass	-43.81	Pass	-37.66	Pass	-48.04	Pass
25.00	-42.34	Pass	-42.40	Pass	-35.75	Pass	-47.25	Pass
31.25	-40.51	Pass	-40.93	Pass	-33.84	Pass	-46.49	Pass
62.50	-34.54	Pass	-35.75	Pass	-27.67	Pass	-41.89	Pass
100.00	-30.29	Pass	-32.83	Pass	-23.17	Pass	-37.81	Pass
