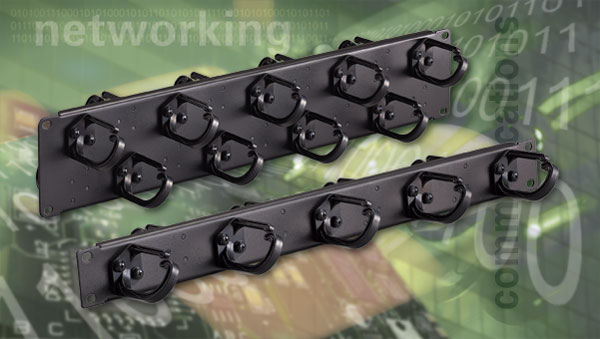

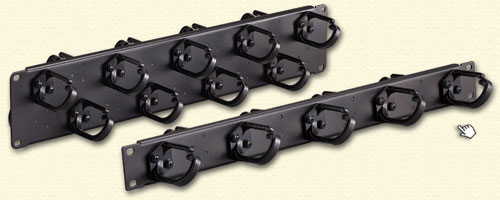

NEX1's horizontal types wall plate is a perfect solution for any installation environments, which require horizontal positions.
 Features:
- Patented tilted rings designed for easy go through
- Eliminates tangled cable even behind racks
- Manages cable on front and rear of telecommunication racks (5 rings in front and 4 rings in rear/1U; 9 rings in front and 9 rings in rear)
- Helps maintain cable bend radius
- Individual detachable rings for combination flexibility
- Available in both 1U and 2U models
| Physical Specifications |
- Mount to standard EIA 19" racks
- Individual detachable rings for flexible combination
- Standard rack mount 19-inch-wide rolled-edge steel for extra strength and durability
|
Cable Management
|
Part Number |
Description |
Std.
Pkg.
Qty. |
|
NCM |
Horizontal cable management panel with patented tilted ring (1U); 5 rings in front and 4 rings in rear |
1 |
| NCM-2 |
Horizontal cable management panel with patented tilted ring (2 U); 9 rings in front and 9 rings in rear |
1 |
Dimensions:
|
Part Number |
Size |
Number of Rings |
|
NCM |
4.45 cm (H) x 48.3 cm (W) x 10 cm (D) (1.8" x 19" x 1.6") |
5 rings in front and 4 rings in rear |
| NCM-2 |
8.9 cm (H) x 48.3 cm (W) x 10 cm (D) (3.6" x 19" x 1.6") |
9 rings in front and 9 rings in rear |
