NEX1's patch panels are made of sturdy, rolled-edge, anodized aluminum. It is perfect for high-speed image, voice and data transmission.
 Features:

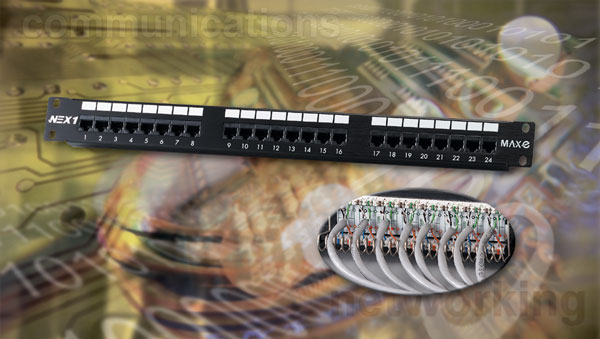

- Includes patented rear springs allowing cable paths maintain straight while manage the cable
- Higher printed-circuited-board capacity
- High density ( 24 ports per rack space)
- Compatible with standard 110 termination practices
- Color-coded for T568A and T568B wiring schemes
| Applications |
- 1,000 Mbps Gigabit Ethernet (IEEE 802.3Z)
- 622 Mbps ATM
- 155 Mbps ATM
- 100 VG-anyLAN (IEEE 802.12)
- 100 Mbps TP-PMD
- 100 Mbps Fast Ethernet (IEEE 802.3u)
- 100 Mbps CDDI
- 10 Mbps Ethernet (IEEE 802.3)
- 4 Mbps & 16 Mbps Token-Ring (IEEE 802.5)
- ISDN
- Analog voice
|
| Physical Specifications |
- High-density 1U, 19" RMS ( rack mount standard ) design ( 24 ports ). Meet EIA-310-D specifications
- Apply UL-94V high-impact, fire-retardant ABS material
- A pair punch sequence enables a pair twist within 1/2" of termination
- Beryllium copper contact: 50-µ gold-plated pins over100-µ nickel layer
- Insertion life cycle:1,000 cycles (minimum) / I.D.C. 250 cycles (minimum)
- Operating temperature: -40 0C to + 68 0C
|
| Electrical Specifications |
- Insulation Resistance: 500M.W
- Contact Resistance: 20M.W
- Current rating: 1.5 Amp
- DC Resistance: Max. 0.1 W
- Dielectric Withstand Voltage: 1,000VAC RMS @60Hz/1 min
|
Dimensions:
|
Number of Ports |
Size |
Wiring |
|
24 |
4.6 cm (H) x 48.3 cm (W) 568B x 4.1 cm (D) (1.8" x 19" x 1.6") |
568A |
Category 5 Patch Panel
| Part Number |
Description |
Std.Pkg.Qty. |
| NPP-24 |

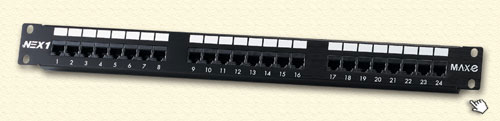

Category 5e Patch Panel. Accepts up to 24 modules. Made of sturdy, rolled-edge anodized aluminum. |
1 |
 Download Category 5e (Enhanced) Patch Panel 1096KB
