特長：
  傾斜のついた特許リングで配線容易です
  ラック前面／背面の固定出来ます
  各リングの取り外し／組み合わせが自由です


1U/2U モデルに使用出来ます


  Features:
  Patented tilted rings designed for easy go through
  Manages cable on front and rear of telecommunication racks
  Helps maintain cable bend radius
  Individual detachable rings for combination flexibility


Available in both 1U and 2U models

仕様

標準 EIA-19 インチラックに設置可能

個々のリング脱着が可能で組み合わせ自由
標準 19 インチラックに適合し、強度と耐久性に優れた角に丸みのあるスチール製

Dimensions:
Part of Port
SIZE
Number of Rings
NCM-D/NCM-S

4.45cm(H) × 48.3cm (W) × 10cm (D) ( 1.8” × 19” × 1.6” )

9(NCM-D)
5(NCM-S)
NCM-2D/NCM-2S

8.9cm(H) × 48.3cm (W) × 10cm (D) ( 3.6” × 19” × 1.6” )

18(NCM-2D)
10(NCM-2S)

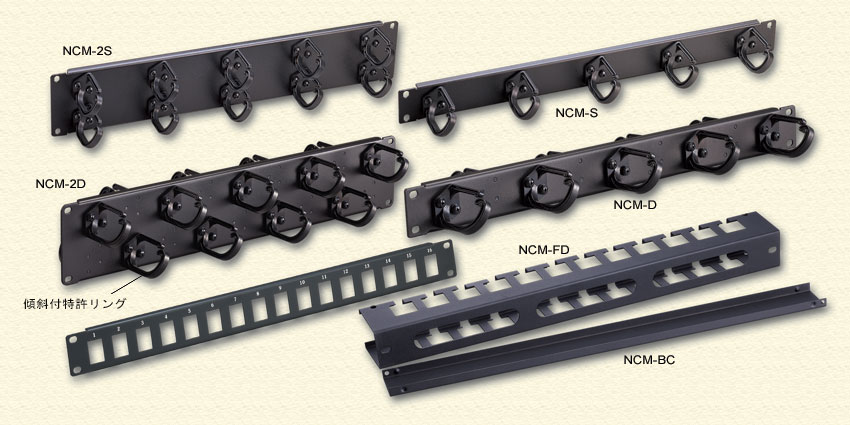

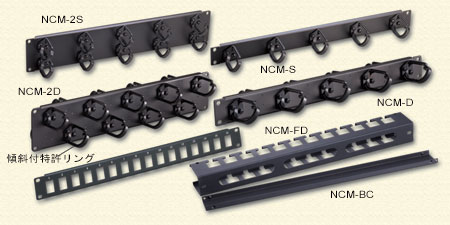

Cable Management Series
Part Number
Description
Std. Pkg. Qty.
NCM-D

Double-sided, horizontal cable management panel with patented tilted rings (1U); 5 rings in the front Panel and 4 rings in the rear panel

1
NCM-S

Single-sided horizontal cable management panel with patented tilted rings (1U); 5 rings in the front Panel

1
NCM-2D

Double-sided, horizontal cable management panel with patented tilted rings (2U); 9 rings in the front Panel and 9 rings in the rear panel

1
NCM-2S

Single -sided, horizontal cable management panel with patented tilted rings (2U); 10 rings in the front Panel
1
NCM-FD

Front manageable typed with ducted panels

1
NCM-BC
 Blank cover for NCM-FD
1

NPPC-16
Part Number
Description
Std. Pkg. Qty.
NPPC-16
Cable management cover
1


Cable Management Series
